嘗試拆解Solidity編譯後的bytecode（一）

以下範例皆參考openzeppelin opcode的系列文章（共六篇）撰寫。

本篇文章建議有 solidity 開發經驗的讀者閱讀，初學者不適合本篇文章。本文與 Solidity opcode基礎有相關性，建議閱讀後再讀本篇文章。

本文目的不在教會讀者寫 opcode，而是要帶領讀者了解 solidity bytecode 的基本架構！本文所述，皆參考 openzeppelin opcode 的系列文章，及使用 remix debug 工具「觀察」bytecode 執行時「memory和stack的變化」所寫出。因此不保證涵蓋能解讀「完整」的 solidity bytecode 架構，這也是本文命名為，嘗試拆解 Solidity 編譯後。

範例程式使用「solidity v0.4.24」，對齊 openzeppelin 範例的版本，讀者操作時，請注意版本號。另外 https://www.evm.codes/?fork=grayGlacier 的 opcode 使用 solidity 最新版本編譯，使用該網站轉譯 bytecode 成 opcode，「執行結果」與 openzeppelin opcode 系列文章會「略有不同」！ 佈署時 constructor 的 _initialSupply 請帶「10000」！！！

// SPDX-License-Identifier: GPL-3.0
pragma solidity ^0.4.24;

contract BasicToken {

  uint256 totalSupply_;
  mapping(address => uint256) balances;

  constructor(uint256 _initialSupply) public {
    totalSupply_ = _initialSupply;
    balances[msg.sender] = _initialSupply;
  }

  function totalSupply() public view returns (uint256) {
    return totalSupply_;
  }

  function transfer(address _to, uint256 _value) public returns (bool) {
    require(_to != address(0));
    require(_value <= balances[msg.sender]);
    balances[msg.sender] = balances[msg.sender] - _value;
    balances[_to] = balances[_to] + _value;
    return true;
  }

  function balanceOf(address _owner) public view returns (uint256) {
    return balances[_owner];
  }
}

將範例合約佈署至測試鏈後，可以拿到以下 bytecode。（建議實際佈署到測試鏈體驗）

可參閱作者佈署至 goerli 測試鏈的合約：https://goerli.etherscan.io/address/0xd048f37a6fea76560907cf4234df58bf5ff10765#code

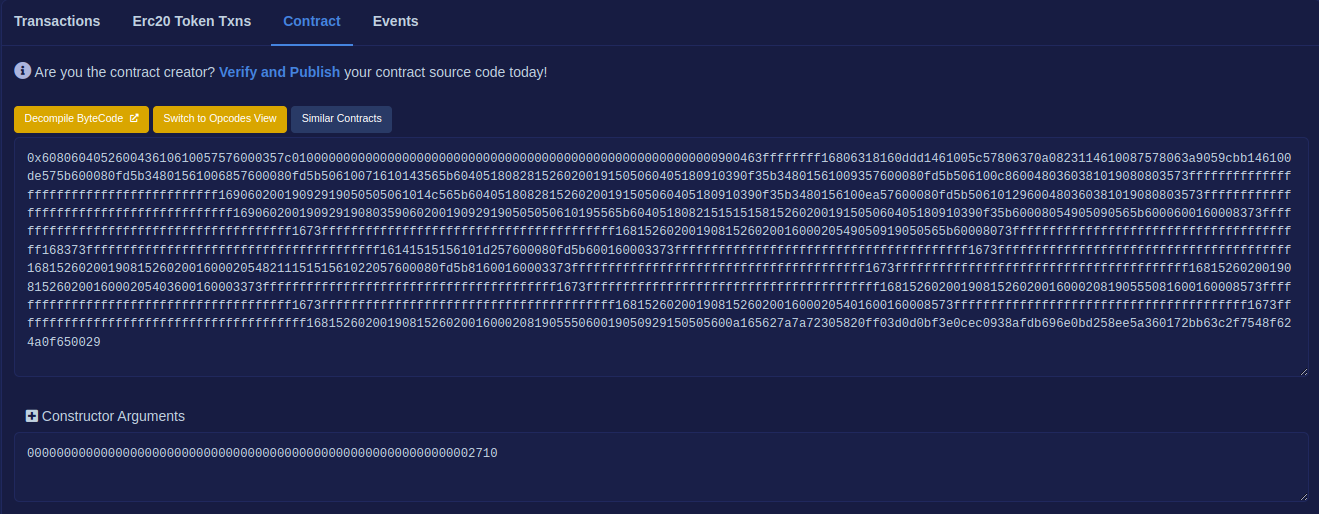

verify前：

// runtime code

608060405260043610610057576000357c0100000000000000000000000000000000000000000000000000000000900463ffffffff16806318160ddd1461005c57806370a0823114610087578063a9059cbb146100de575b600080fd5b34801561006857600080fd5b50610071610143565b6040518082815260200191505060405180910390f35b34801561009357600080fd5b506100c8600480360381019080803573ffffffffffffffffffffffffffffffffffffffff16906020019092919050505061014c565b6040518082815260200191505060405180910390f35b3480156100ea57600080fd5b50610129600480360381019080803573ffffffffffffffffffffffffffffffffffffffff16906020019092919080359060200190929190505050610195565b604051808215151515815260200191505060405180910390f35b60008054905090565b6000600160008373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff168152602001908152602001600020549050919050565b60008073ffffffffffffffffffffffffffffffffffffffff168373ffffffffffffffffffffffffffffffffffffffff16141515156101d257600080fd5b600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff16815260200190815260200160002054821115151561022057600080fd5b81600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000205403600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000208190555081600160008573ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000205401600160008573ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000208190555060019050929150505600a165627a7a72305820ff03d0d0bf3e0cec0938afdb696e0bd258ee5a360172bb63c2f7548f624a0f650029

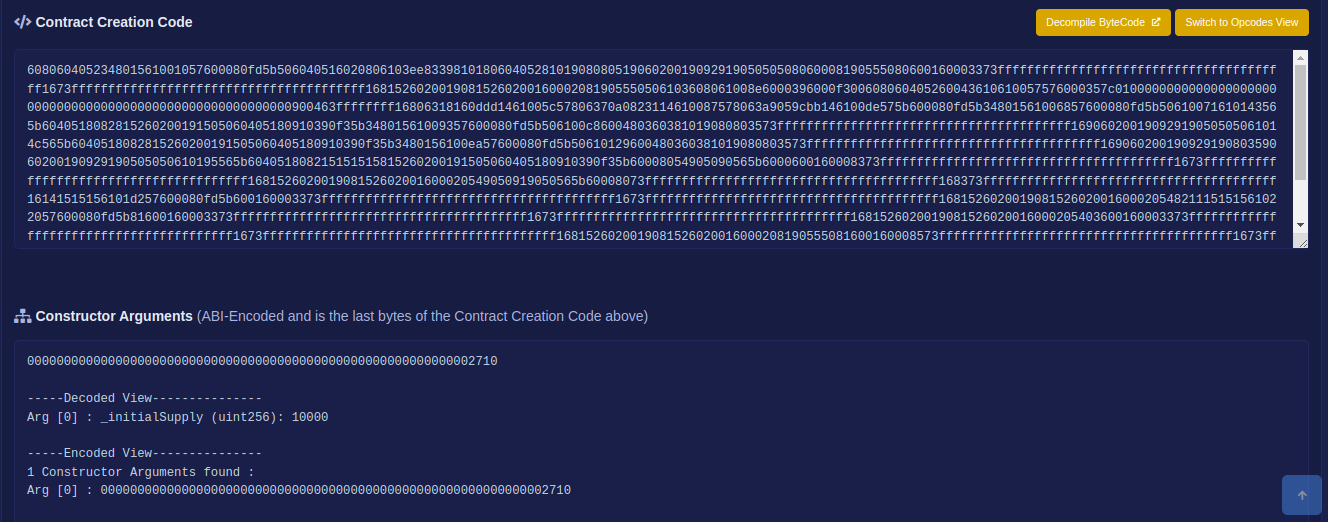

verify後：

// creation code + runtime code + constructor arguments

608060405234801561001057600080fd5b506040516020806103ee833981018060405281019080805190602001909291905050508060008190555080600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff16815260200190815260200160002081905550506103608061008e6000396000f300608060405260043610610057576000357c0100000000000000000000000000000000000000000000000000000000900463ffffffff16806318160ddd1461005c57806370a0823114610087578063a9059cbb146100de575b600080fd5b34801561006857600080fd5b50610071610143565b6040518082815260200191505060405180910390f35b34801561009357600080fd5b506100c8600480360381019080803573ffffffffffffffffffffffffffffffffffffffff16906020019092919050505061014c565b6040518082815260200191505060405180910390f35b3480156100ea57600080fd5b50610129600480360381019080803573ffffffffffffffffffffffffffffffffffffffff16906020019092919080359060200190929190505050610195565b604051808215151515815260200191505060405180910390f35b60008054905090565b6000600160008373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff168152602001908152602001600020549050919050565b60008073ffffffffffffffffffffffffffffffffffffffff168373ffffffffffffffffffffffffffffffffffffffff16141515156101d257600080fd5b600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff16815260200190815260200160002054821115151561022057600080fd5b81600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000205403600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000208190555081600160008573ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000205401600160008573ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000208190555060019050929150505600a165627a7a72305820ff03d0d0bf3e0cec0938afdb696e0bd258ee5a360172bb63c2f7548f624a0f6500290000000000000000000000000000000000000000000000000000000000002710

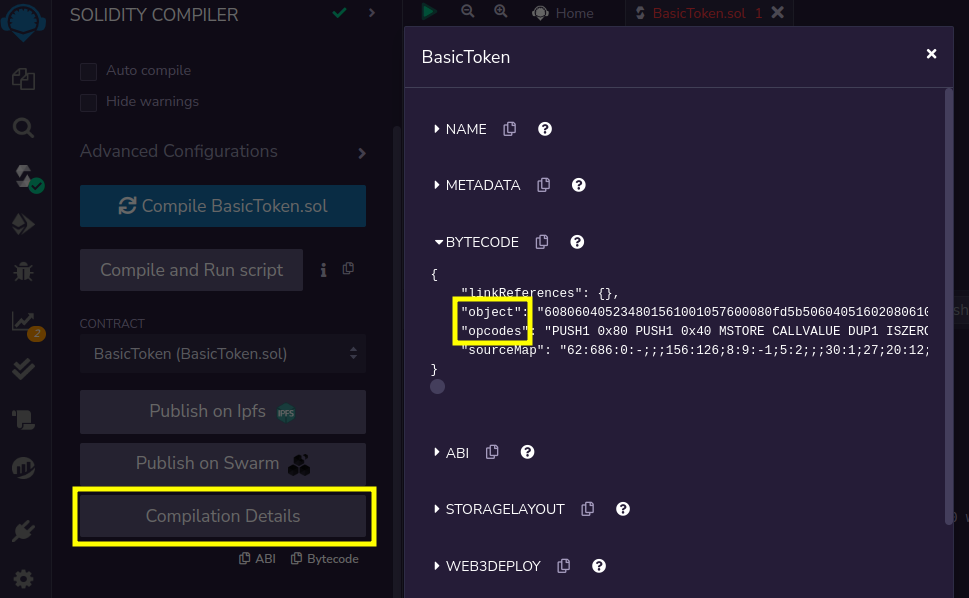

利用remix查閱creation code + runtime code：（object為bytecode，可直接轉譯為opcodes。opcodes是PUSH1 0x80 PUSH1 0x40…以下省略）

// creation code + runtime code

608060405234801561001057600080fd5b506040516020806103ee833981018060405281019080805190602001909291905050508060008190555080600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff16815260200190815260200160002081905550506103608061008e6000396000f300608060405260043610610057576000357c0100000000000000000000000000000000000000000000000000000000900463ffffffff16806318160ddd1461005c57806370a0823114610087578063a9059cbb146100de575b600080fd5b34801561006857600080fd5b50610071610143565b6040518082815260200191505060405180910390f35b34801561009357600080fd5b506100c8600480360381019080803573ffffffffffffffffffffffffffffffffffffffff16906020019092919050505061014c565b6040518082815260200191505060405180910390f35b3480156100ea57600080fd5b50610129600480360381019080803573ffffffffffffffffffffffffffffffffffffffff16906020019092919080359060200190929190505050610195565b604051808215151515815260200191505060405180910390f35b60008054905090565b6000600160008373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff168152602001908152602001600020549050919050565b60008073ffffffffffffffffffffffffffffffffffffffff168373ffffffffffffffffffffffffffffffffffffffff16141515156101d257600080fd5b600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff16815260200190815260200160002054821115151561022057600080fd5b81600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000205403600160003373ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000208190555081600160008573ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000205401600160008573ffffffffffffffffffffffffffffffffffffffff1673ffffffffffffffffffffffffffffffffffffffff1681526020019081526020016000208190555060019050929150505600a165627a7a72305820ff03d0d0bf3e0cec0938afdb696e0bd258ee5a360172bb63c2f7548f624a0f650029

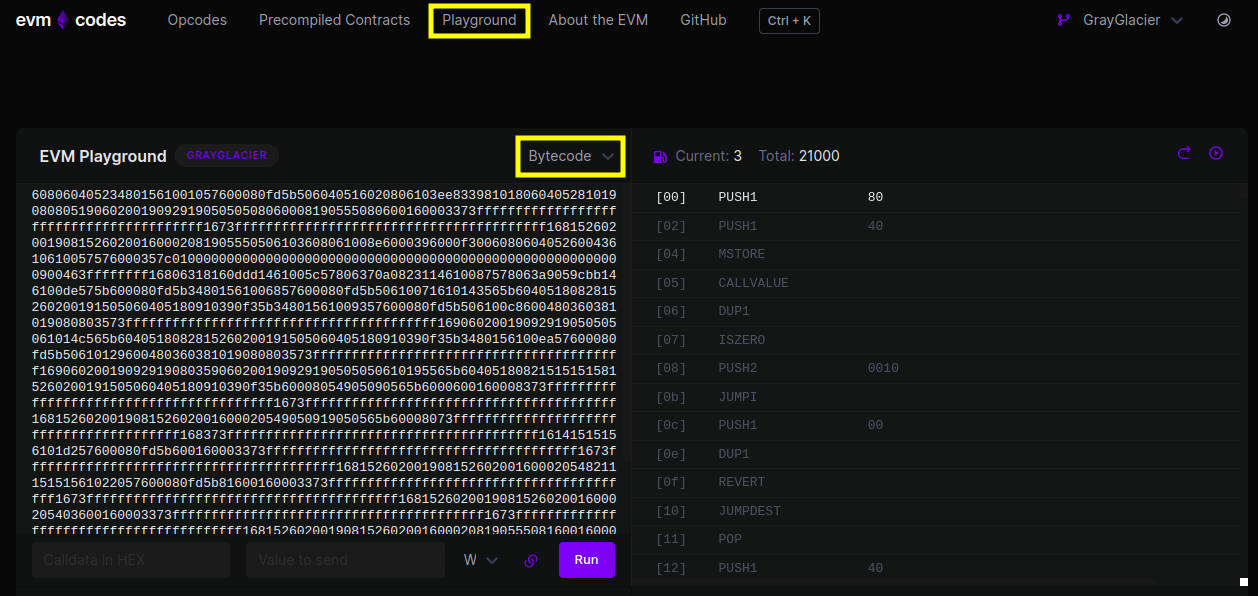

evm codes 網站可將 bytecode 直接轉為 opcode，以便追蹤 opcode（請複製creation code + runtime code 將其轉換為可閱讀之 opcode）

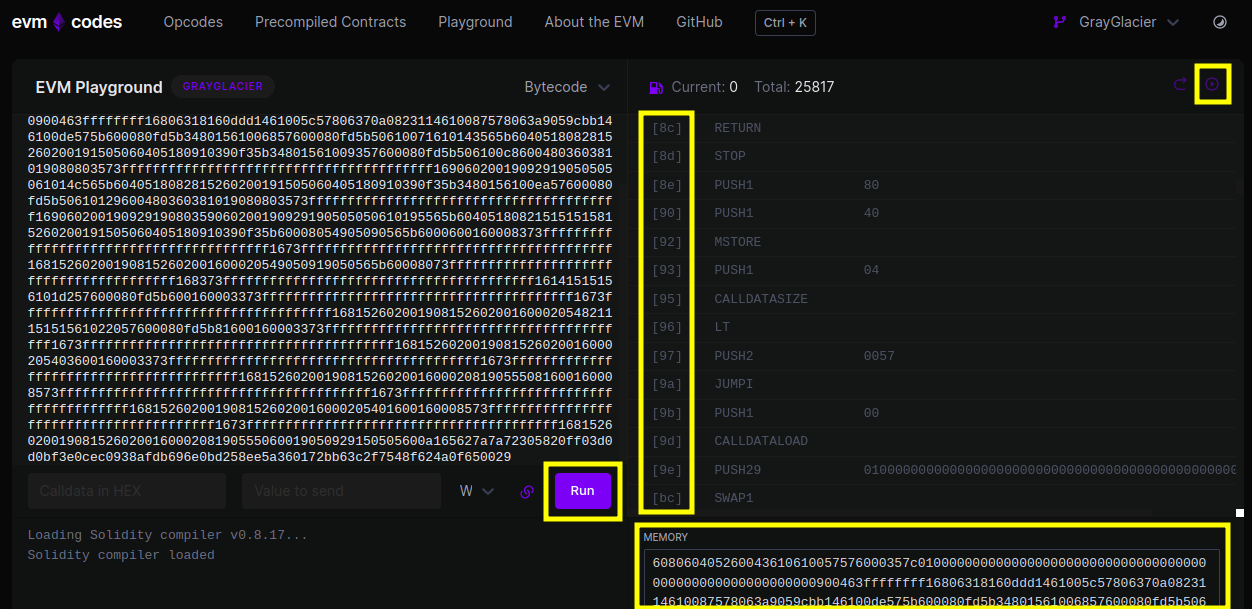

接續第4點，按下run及右上角的播放鍵後，可以在 memory 得到一組bytecode。查閱過後（用 ctrl + f 查閱），可以發現該組 btyecode 是 runtime code

前置作業完成，讓我們正式開始拆解！

Solidity的bytecode可以拆成兩個大項目，creation code和runtime code。

creation code：代表constructor的程式碼
runtime code：代表非constructor的程式碼，也就是developer寫的各個function，最終會留在以太鏈的bytecode（程式碼）

拆解一份bytecode，要先找到程式的終止位置及 CODECOPY opcode。終止程式的 opcode 有stop、return、revert、selfdestruct（忘記可以回去複習 Solidity opcode基礎）。CODECOPY opcode的用途是將指定區間的opcode複製到memory。

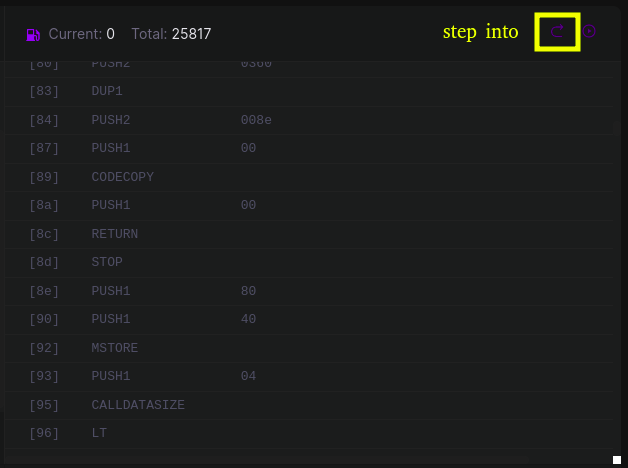

綜上所述，讓我們回到前置作業第5點的圖片，同步尋找codecopy和終止程式的opcode。我們發現89的位置是codecopy，8c的位置是return。若我們用step into一步步執行opcode，會發現執行到8c程式就把8e後的程式直接return了！（如下圖）

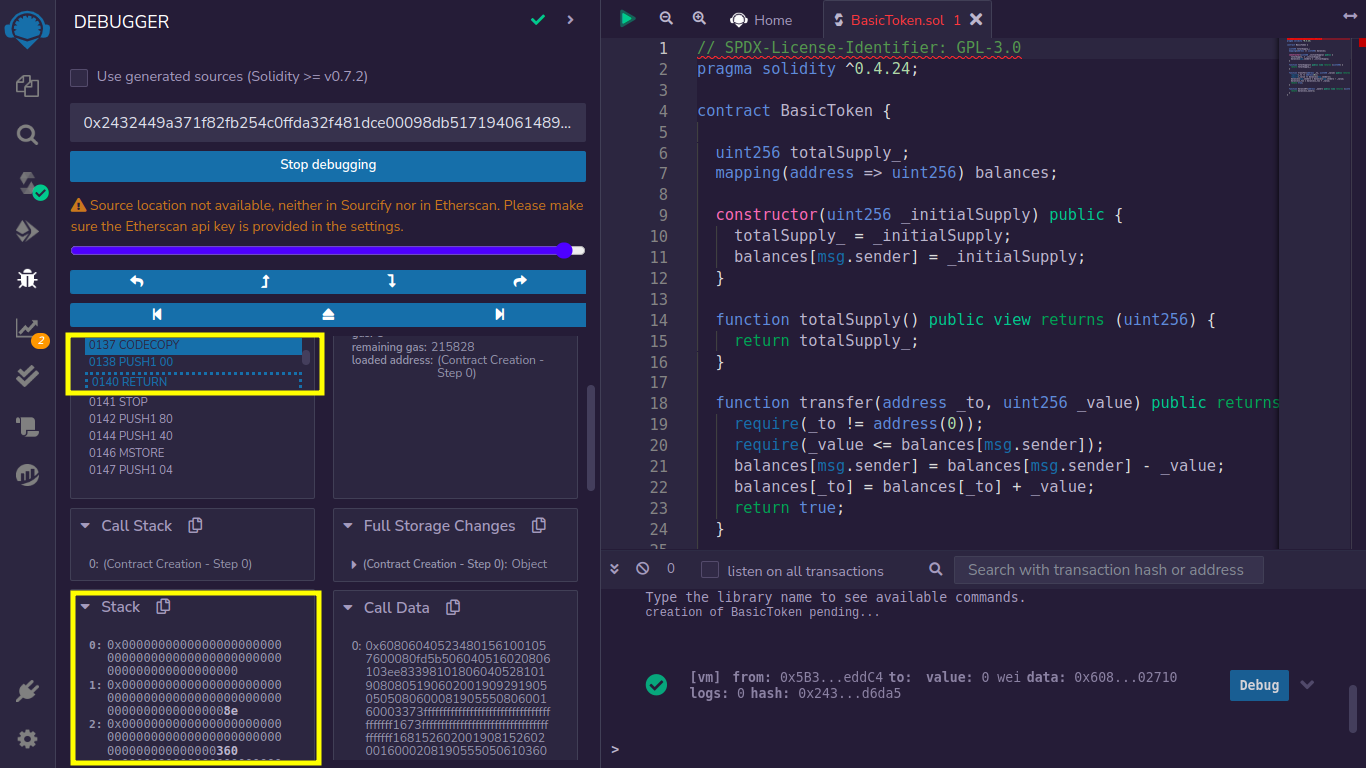

用 remix debug工具觀察 codecopy 吃的參數

現在統整一下剛剛的操作。

我們執行了 creation code + runtime code。注意，程式的第 1 部份是 creation code，第 2 部份是 runtime code。「程式從 creation code 開始執行，也就是從 constructor 開始執行！」
creation code 佔據 142bytes，142 的 16 進制為 8d
codecopy 從8e開始複製 opcode 到最後一個 bytecode
codecopy 執行過到8c（return opcode）直接return記憶體的資料回鏈上，終止程式。「記憶體內的資料正是 runtime code！」

至此我們已經知曉一份合約是如何被初始化，及佈署至以太坊上囉！~^^
